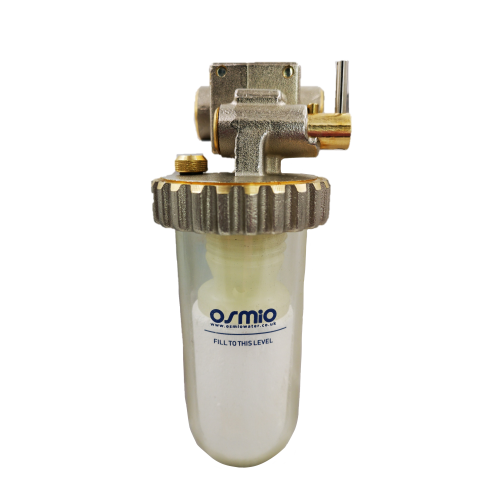

Osmio MiniSoft Non-Salt Softener 1/2" BSPP Female - 30 LPM
- Regular price
- Regular price
- Sale price
The Osmio MiniSOFT Suitable for homes with 15mm pipe at the entry point and up to 2 bathrooms (30 Litres per Minute peak flow rate). Smart & Environmentally Friendly Whole House Limescale Control. Protect your home from limescale and corrosion internally, inside pipes and boilers. It makes cleaning easier. Limescale residues wipe off easier off dried surfaces. Compact, easy to fit (no bypass needed), and simple media change every 20,000 litres. Simple, environmentally friendly and economical.
Smart & Environmentally Friendly Whole House Limescale Control. Protect your home from limescale and corrosion internally,
inside pipes and boilers. It makes cleaning easier. Limescale residues wipe off easier off dried surfaces. Compact, easy to fit (no bypass needed), and simple media change every 20,000 litres. Simple, environmentally friendly, and economical.
This product uses polyphosphate which is proportionally dosed into the water at 5ppm (or 5 mg/l). It cannot over-dose the water so the level is always between 3-5ppm.
Polyphosphate is a food grade, non-toxic substance that is used widely in coffee machine filters, jug filters and has a long-established record of being safe to use and drink. Therefore, this product can be installed at the entry point of a property and serve the entire building.
This new technology is better than alternative solutions such as salt-based softeners, which are the most heavyweight, expensive, and environmentally damaging and are not an option if you have no sewerage services and your own septic tank. Salty water down the drain is an environmental disaster, especially for waste water treatment.
The Osmio MiniSOFT is suitable for properties with up to a maximum of 2 bathrooms (maximum flow 33 litres per minute) where there is 15mm pipework coming in. If you have a larger property please see the Osmio MaxiSOFT. The MiniSOFT comes with one free of charge starter refill. Each refill lasts for approximately 20,000 litres and is available to order as a pack of six refills. In a house with two adults, 6 refills last around 400 days.
- Easy to fit and low cost
- Easy shut off for simple media replacement
- Avoid the formation of calcium bicarbonate preventing incrustations in pipes and heating systems
- Create a film inside the plumbing system which protects pipes from corrosion
- Environmentally friendly alternative to salt softeners that actually really works
How it works
The Osmio MiniSOFT works by proportionally dosing the water with 3-5 ppm of polyphosphate. Polyphosphates are food grade and non toxic and used in jug and coffee filters. The system can be fitted to the entry point of a property without the need for a separate bypass to the kitchen tap (i.e. it is drinkable). The media replacement is quick and easy and lasts up to 20,000 litres.
What it does compared to salt softeners
Salt based softeners actually take out the minerals and add in around 150 mg/l of sodium carbonate (not drinkable). This produces a lather effect with soap and the salt you add into it is used to backwash the resin in the tank. This flushes salty water down the drain which is an environmental problem and is not suitable for homes with septic tanks. Installation must involve a bypass to the kitchen cold tap comply with WRAS Regs.
The Osmio MiniSOFT gets even better results than a salt softener when you consider only its “internal” effect. This is where the water cannot dry and therefore the material contact is protected from the formation of scale and corrosion which is where all the expensive plumbing problems happen. The Osmio MiniSOFT does not remove the need for cleaning off the appearance of limescale nor does it affect how soap lathers. It just makes the appearance of limescale which is less prone to forming and mineral residues less do not stick as much once the water has dried on a surface, making it easier to wipe off.
|In Depth||Technical Data
Connectors Diameter 1/2" BSPP Female
- Height 167 mm
- Length 66 mm
- Depth 95 mm
Dosing 3-5 ppm
Max Pressure 6 bar
Flow Rate 2 mc/h
Pressure drop 0.2 bar
Incoming water temperature 5 - 40 °C
Polyphosphate media is 100% effective in stored water up to 70 °C
Recommended up to 300 ppm CaCO3 (Calcium Carbonate)
Body Brass T58
Doser weight 850 gr
Polyphosphate weight 80 gr
Treated water 20 mc
Does not come with a spanner, bowl can be unscrewed by hand, using an adjustable spanner or with the MiniSoft spanner which can be purchased separately
